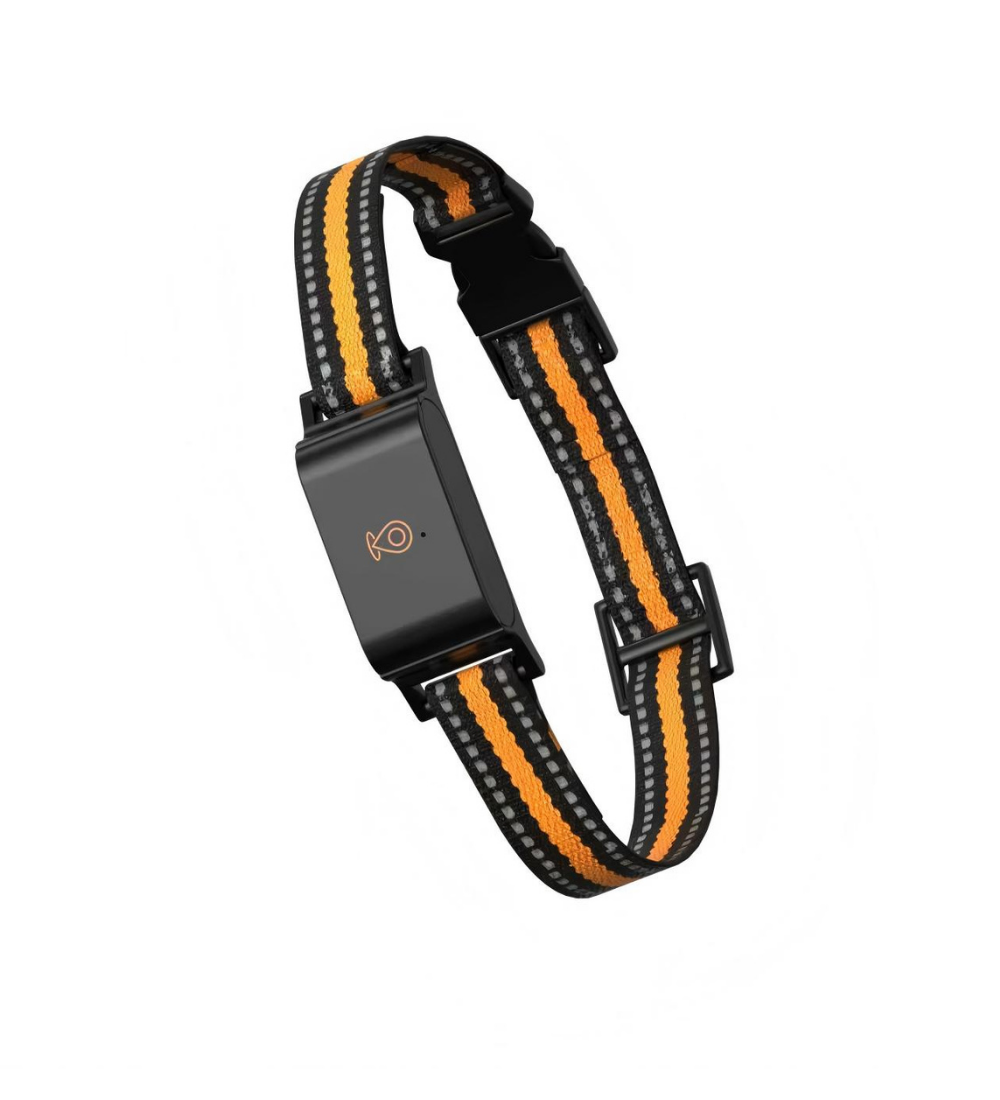

C09 Pet GPS Tracker

1. Introduction

1.1 Product Overview

1.2 Package Contents

• 1 x C09 Pet GPS Tracker
• 1 x Magnetic USB Charging Cable
• 1 x Set of Screws and Screwdriver
• 1 x User Manual
• 1 x SIM Card Holder (with options of flip – top or self – eject)

2. Specifications

3. Quick Start

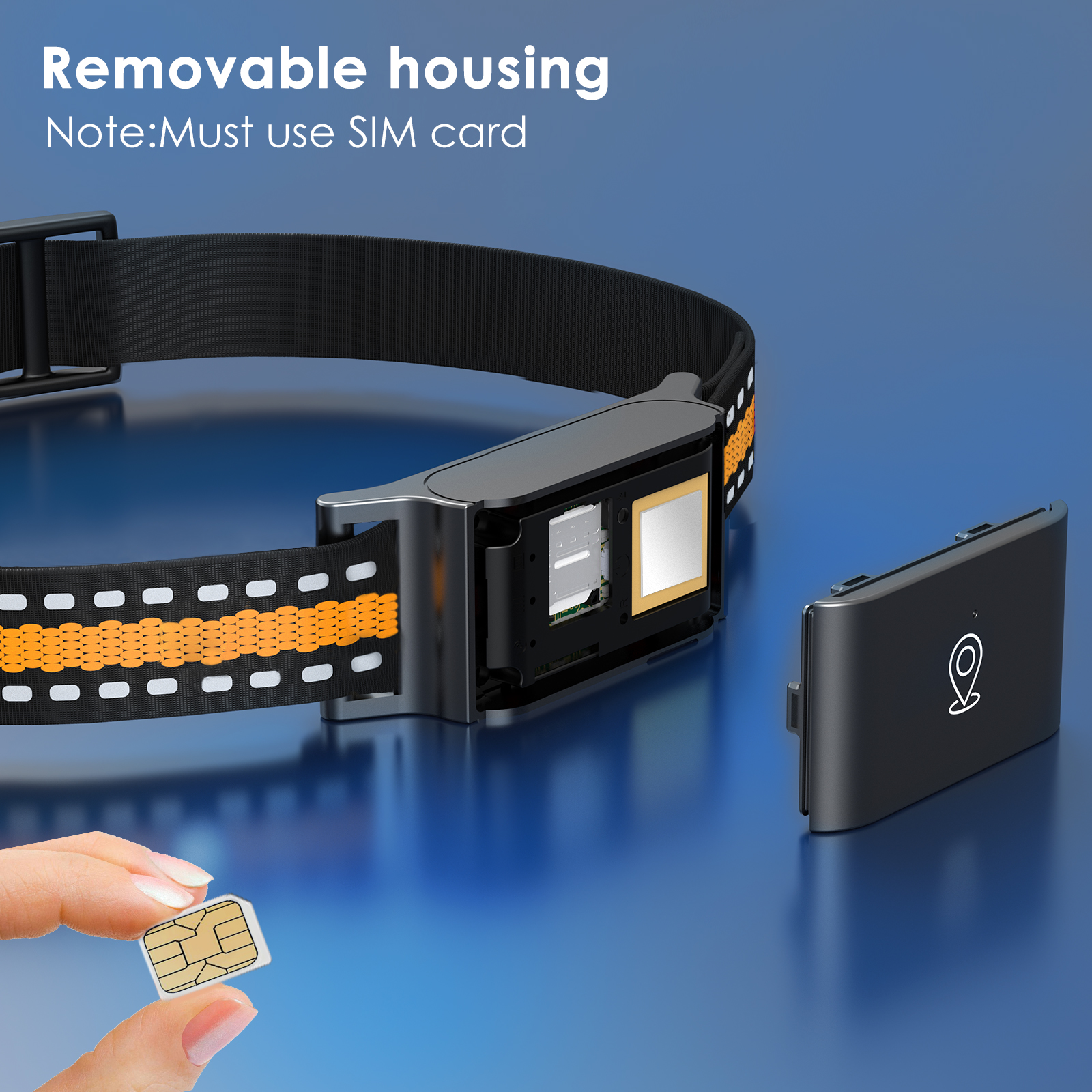

3.1 Insert SIM Card

1. Open the SIM card slot. You can choose between the flip – top or self – eject Nano SIM card holder option.
2. Insert a compatible nano – SIM card with an appropriate data plan for the supported network bands. Make sure the card is properly inserted and contacts are well – made.
3. Close the SIM card slot securely.

3.2 Charge the Device

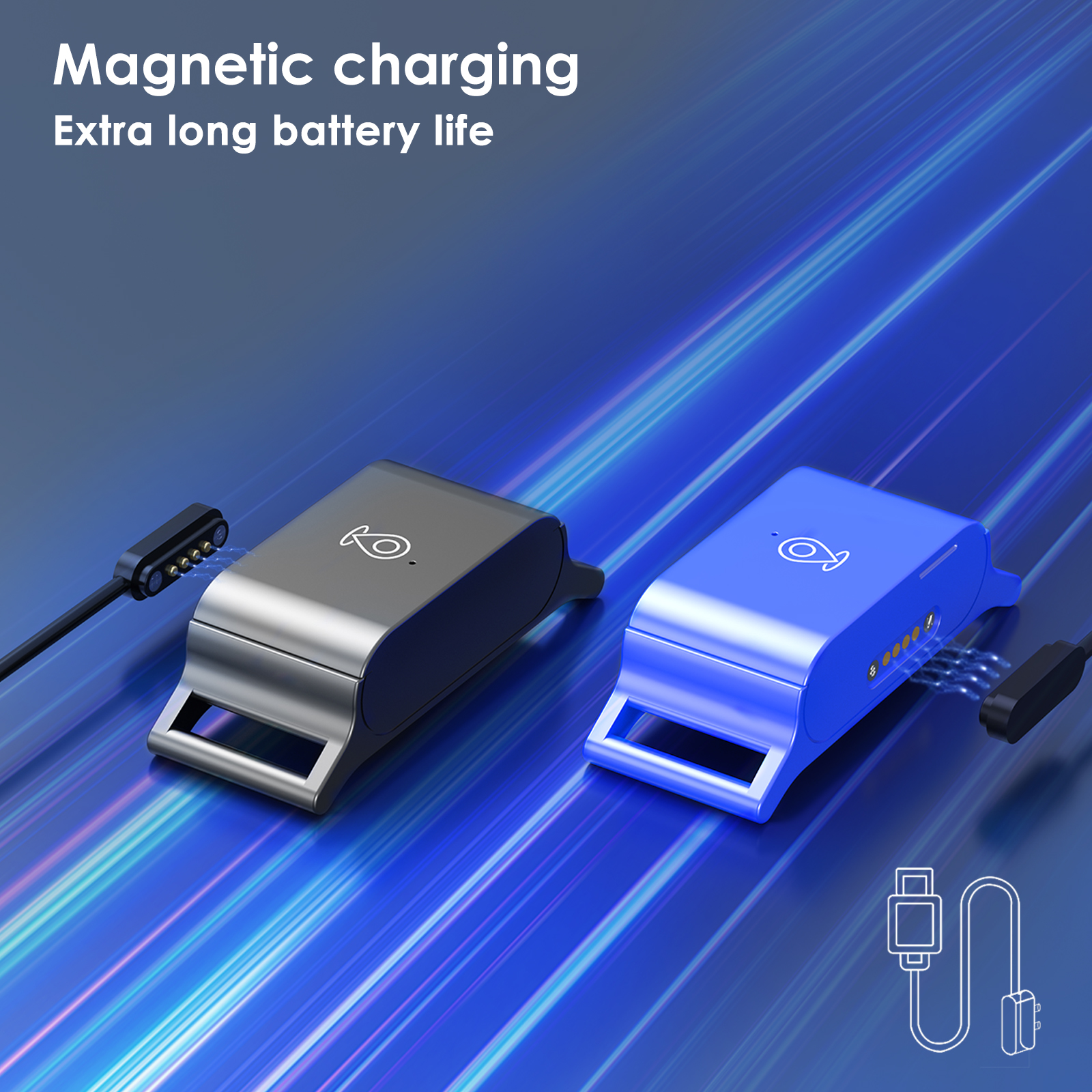

1. Connect the magnetic USB charging cable to a 5V power source, such as a USB port on a computer or a wall charger.
2. Align the magnetic connector of the cable with the charging port on the device. The connector will attach automatically.
3. The charging indicator (red/blue) will light up to show the charging status. When fully charged, the indicator may change color or turn off.

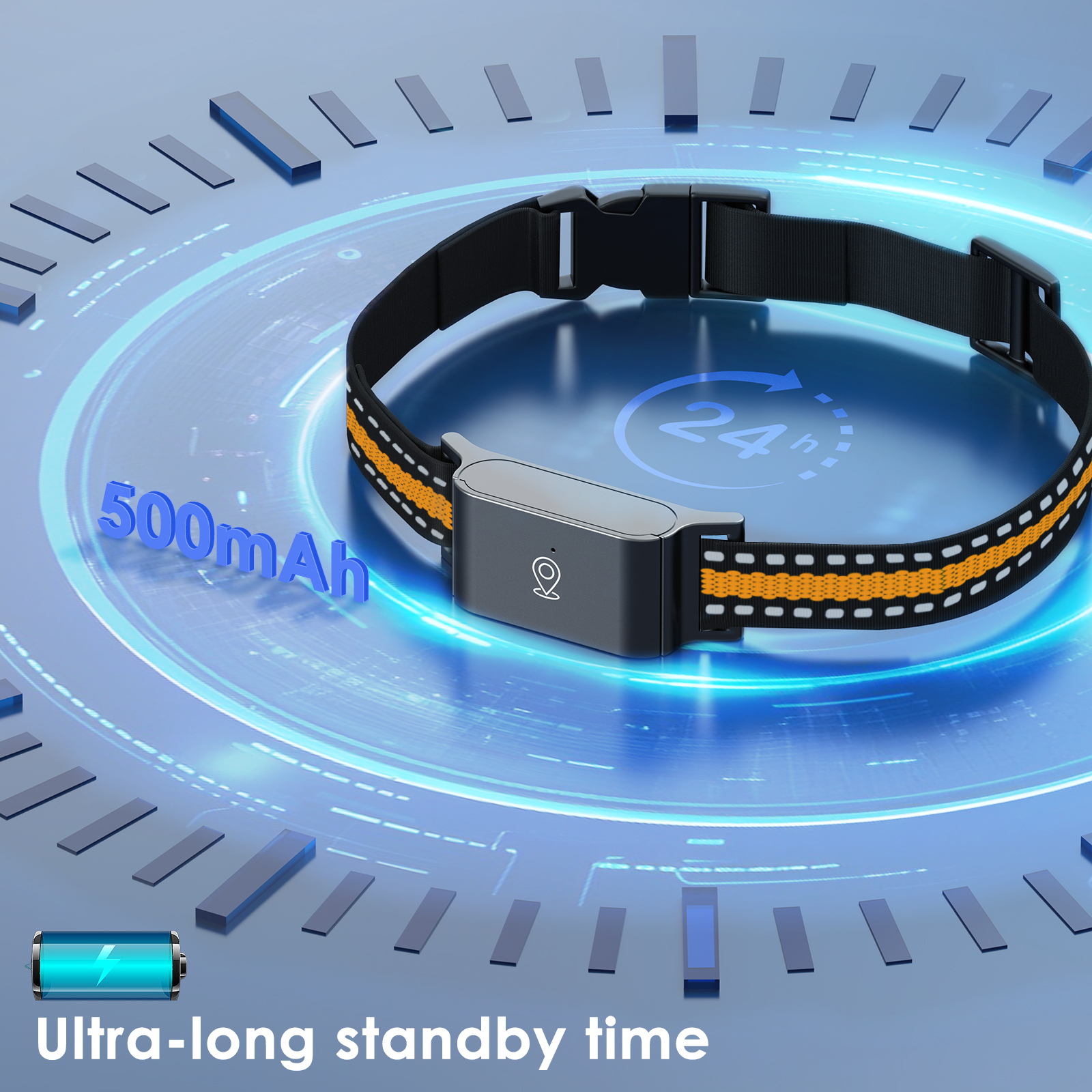

4. Charging time is approximately based on the battery capacity and charging current. For the 500mAh battery with 500mAh charging current, it takes about 1 hour to fully charge.

3.3 Download & Bind APP

1. Scan the QR code on the package or user manual to download the 365GPS APP from the App Store (for iOS) or Google Play Store (for Android).
2. Register a new account or log in with your existing credentials on the APP.
3. Tap the “Add Device” option in the APP. Select “Pet Tracker” as the device type and follow the on – screen instructions to pair the C09 device with the APP. This may involve using Bluetooth or the device’s network connection.
4. Enter the device’s unique serial number (if required) which can be found on the device or its packaging to complete the binding process.

4. Function Operations

4.1 Real – Time Positioning

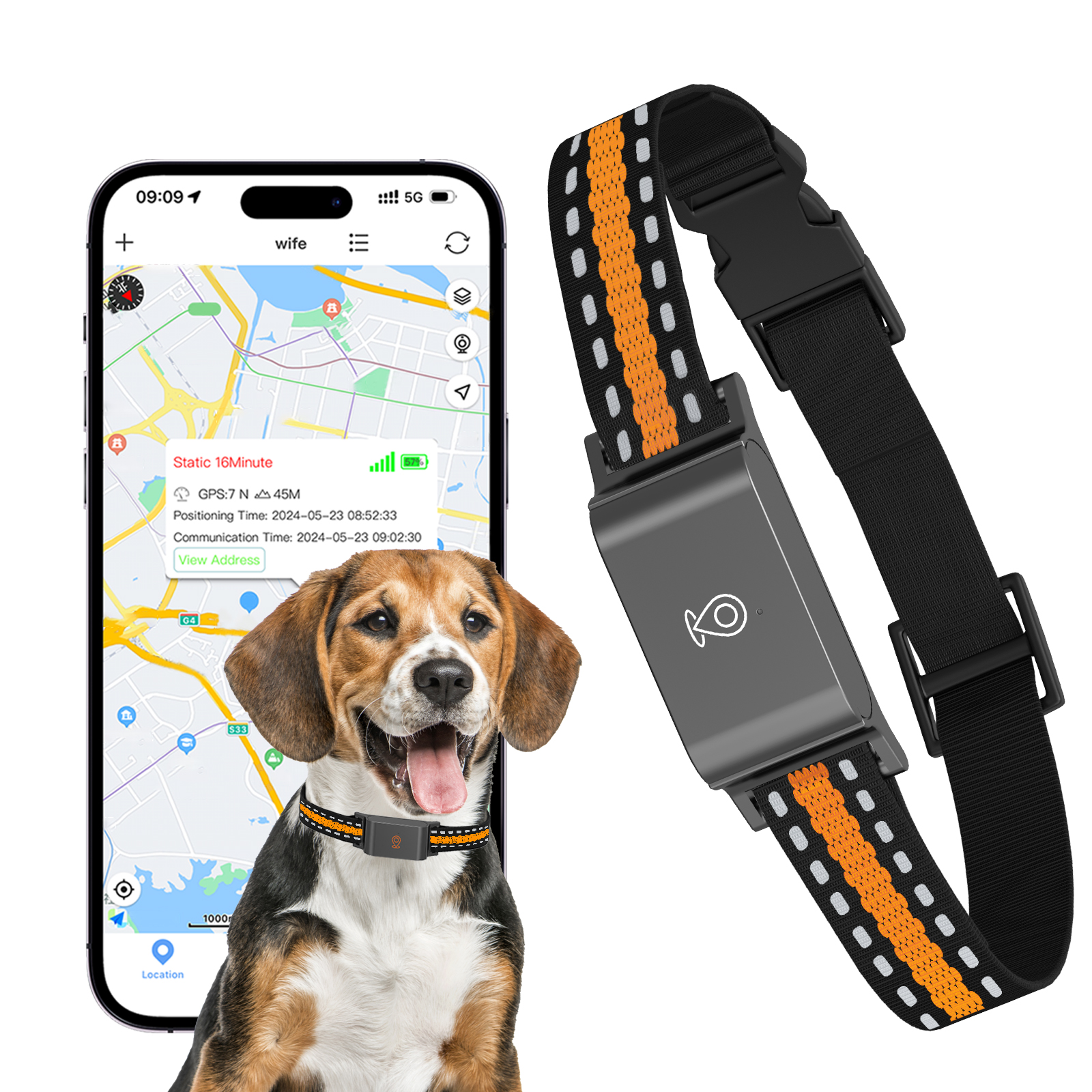

• Tap the “Location” icon on the APP’s home screen to view your pet’s real – time location on the map. You can adjust the positioning refresh frequency in the APP settings, choosing between high – precision (more power – consuming) and low – power modes.
• The APP also provides navigation functions to help you find your pet quickly if they are lost.

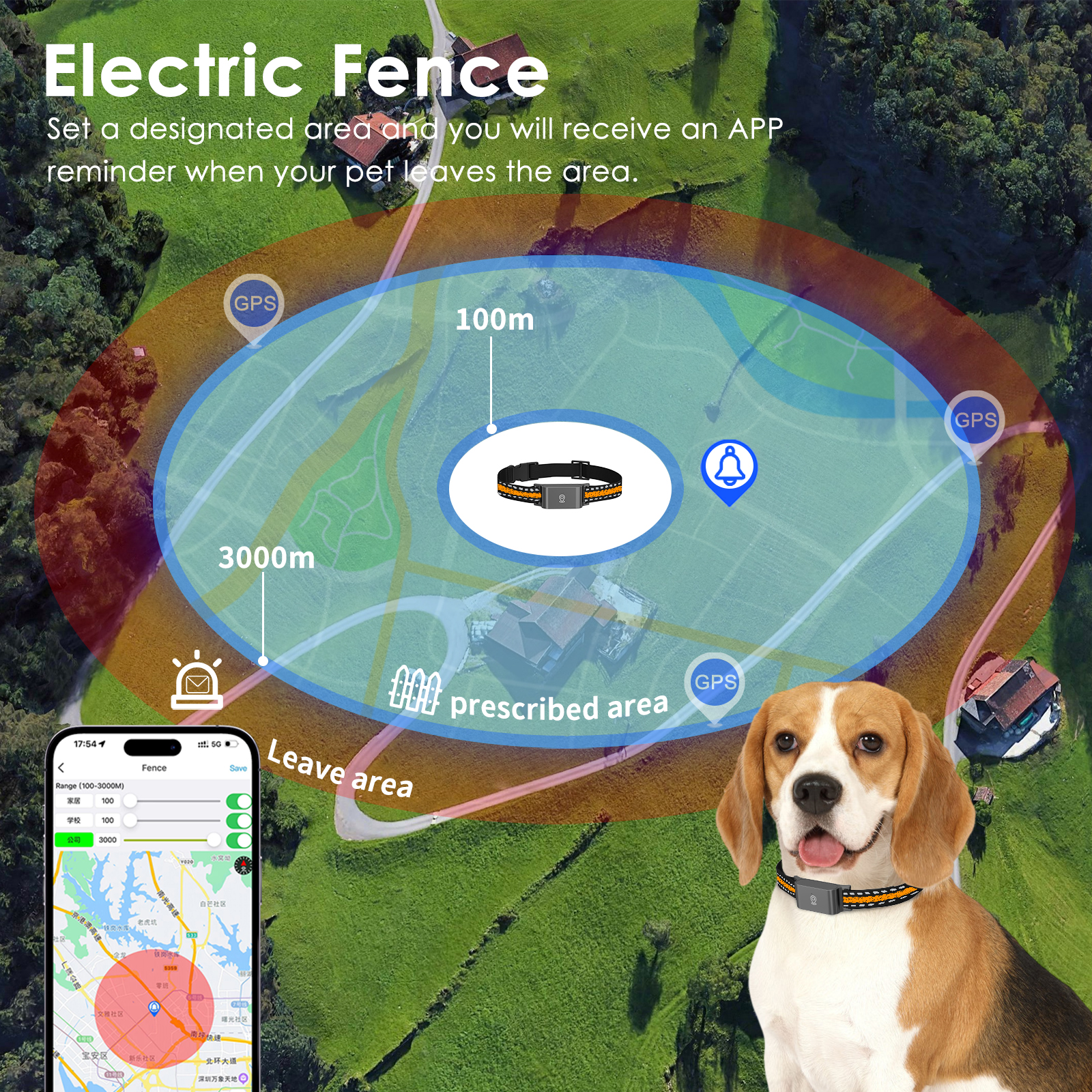

4.2 Electronic Fence

1. In the APP, go to the “Fence” section and select “Add Fence”.
2. Draw a virtual fence area on the map. You can set the radius and specific location according to your needs. There are two types of fences available: GPS fence, which compares GPS positioning data to detect entry and exit, and WIFI fence, which works by comparing WIFI hotspots.
3. Set up alert notifications for when your pet enters or exits the defined fence area. You can choose to receive push notifications on your phone.

4.3 One – Key Search

• Press the side button on the device for 3 seconds or tap the “One – Key Search” option in the APP. The device will emit a beeping sound or flash its indicator lights (red/green/blue smart LEDs) to help you locate your pet nearby.

4.4 Activity Monitoring

• The built – in 3D G – Sensor records your pet’s daily steps, activity duration, and movement trajectory.
• In the “Health” section of the APP, you can view detailed reports on your pet’s activity, including calorie consumption and total movement distance over time.

4.5 SOS and Communication Functions

• If your pet is in an emergency, you can set up an SOS function in the APP. When triggered, it can send out an alert with the pet’s location to pre – defined contact numbers.
• For the “Call” function in the APP, you can either call the device to listen to the sounds around your pet or set up voice monitoring, where the device will call back a specified number for you to hear the surroundings.

4.6 Historical Trajectory

• Access the “Historical Trajectory” section in the APP to view your pet’s movement path for any day within the past 90 days. This can help you understand your pet’s habits and areas they frequent.

5. APP Settings

5.1 Device Management

• Rename the device to a more personalized name for easy identification. Share device access with other family members or caregivers by adding their accounts in the APP.
• Enable or disable specific functions of the device, such as the automatic smart light feature, location recording frequency, and alert sounds.

5.2 Notification Settings

• Customize the types of alerts you want to receive, including low battery warnings, device offline notifications, and fence breach alerts.
• Choose the notification methods, such as APP push notifications, SMS messages, or both. Make sure to enable the relevant permissions on your phone for proper notification delivery.

5.3 Firmware Update

• The APP will prompt you when a new firmware version is available for your C09 pet tracker.
• Tap “Update Now” to start the DFOTA (Device Firmware Over – The – Air) upgrade process. Ensure that the device is connected to a stable network and has sufficient battery power during the upgrade.

6. Maintenance & Troubleshooting

6.1 Daily Maintenance

• Keep the device dry. Although it has an IP65 waterproof rating, avoid prolonged immersion in water.
• Clean the device with a soft, dry cloth. Do not use abrasive or corrosive cleaning agents.
• Periodically check the SIM card slot and charging port for dust or debris. If necessary, use a can of compressed air to gently clean these areas.

6.2 Common Issues
